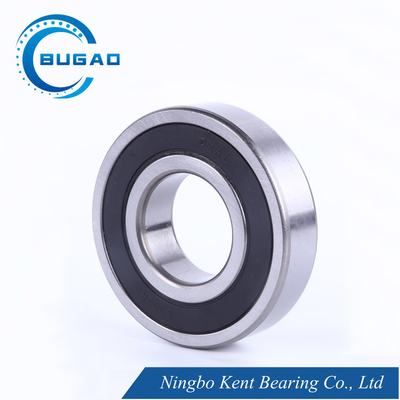

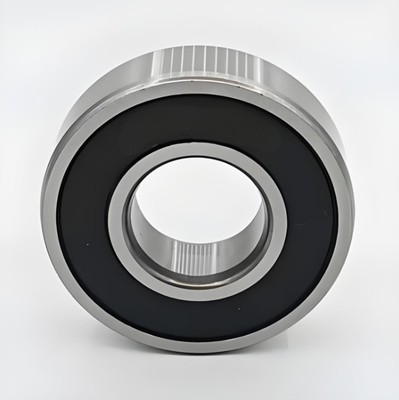

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery

Name: Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery
Brand: Ningbo Kent Bearing Co., Ltd
SKU: 6203 6204 6205 6206
Availability: InStock

Nombre De La Marca:	BUGAO/NBKT
Número De Modelo:	6203 6204 6205 6206
Cuota De Producción:	1,000 sets
Precio:	Negoiatiable
Tiempo De Entrega:	Negotiable
Condiciones De Pago:	T/T

Información detallada

Descripción de producto

Información detallada

Place of Origin:

China

Certificación:

ISO9001:2015

El material:

Acero de rodamiento, acero al carbono, etc.

Precisión:

P0, P6, P5, P4

Acceso:

C2, C0, C3, C4

Especificación:

El valor de las emisiones de CO2 es el valor de las emisiones de CO2 de los combustibles fósiles.

Cierre:

Abierto, sellado y protegido

Número de fila:

En una sola fila

Número de fila:

En una sola fila

Ruido y vibración:

Las medidas de seguridad se aplican a los vehículos de las categorías M1 y M2.

Ruido y vibración:

Las medidas de seguridad se aplican a los vehículos de las categorías M1 y M2.

Embalaje:

Embalaje individual, envasado por tubo, envasado a medida

Método de envío:

por vía aérea, por mar, por vía aérea, negociable

Código del SH:

8482102000

Servicio de OEM:

La personalización es bienvenida

Packaging Details:

Single/Barrels Package

Supply Ability:

30,000,000 sets

Descripción de producto

Inch 16 series bearings are widely used in the automotive industry, machine tools, electric motors, water pumps, textile machinery, etc. Inch 16 series mainly used in the transmission system, suspension system and steering system of automobiles, to ensure the smooth operation and handling of vehicles ‌

Kent bearings have the advantages of high speed, low noise, high precision and long life. The 20-year source factory always provides you with reliable products and services.

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 0

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 1

Basic Bearing No.	Bore d mm inch	Outer Diameter D mm inch	Width W mm inch	Radius r mm inch	Basic Load Rating KN		Ball Complement
					Dynamic	Static	NO.	Size mm
					Dynamic	Static
					C	CO
1601	4.763 .1875	17.463 .6875	6.350 .2500	0.3 .012	1.511	0.724	6	3.969
1602	6.350 .2500	17.463 .6875	6.350 .2500	0.3 .012	1.511	0.724	9	2.831
1603	7.938 .3125	22.225 .8750	7.144 .2812	0.3 .012	2.547	1.342	7	3.969
1604	9.525 .3750	22.225 .8750	7.144 .2812	0.3 .012	2.547	1.342	7	3.969
1605	7.938 .3125	23.019 .9062	7.938 .3125	0.3 .012	2.547	1.342	7	3.969
1606	9.525 .3750	23.019 .9062	7.938 .3125	0.3 .012	2.547	1.342	7	3.969
1607	11.113 .4375	23.019 .9062	7.938 .3125	0.3 .012	3.556	1.938	7	3.969
1614	9.525 .3750	28.575 1.1250	9.525 .3750	0.3 .012	3.921	2.245	8	4.763
1615	11.113 .4375	28.575 1.1250	9.525 .3750	0.3 .012	3.921	2.245	8	4.763
1616	12.700 .5000	28.575 1.1250	9.525 .3750	0.3 .012	3.921	2.245	8	4.763
1620	11.113 .4375	34.925 1.3750	11.113 .4375	0.6 .024	5.881	3.471	10	4.763
1621	12.700 .5000	34.925 1.3750	11.113 .4375	0.6 .024	5.881	3.471	10	4.763
1622	14.288 .5625	34.925 1.3750	11.113 .4375	0.6 .024	5.881	3.471	10	4.763
1623	15.875 .6250	34.925 1.3750	11.113 .4375	0.6 .024	5.881	3.471	10	4.763
1628	15.875 .6250	41.275 1.6250	12.700 .5000	0.6 .024	7.232	4.45	9	6.35
1630	19.050 .7500	41.275 1.6250	12.700 .5000	0.6 .024	7.232	4.45	9	6.35
1633	15.875 .6250	44.450 1.7500	12.700 .5000	1.0 .039	7.232	4.45	9	6.35
1635	19.050 .7500	44.450 1.7500	12.700 .5000	1.0 .039	7.232	4.45	9	6.35

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 2

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Wide Applications of Deep Groove Ball Bearings


Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 5

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 6

Etiquetas:

Rodamiento de bolas de motor

Los rodamientos de rodillos de cerámica

Transportes sellados de goma

Productos relacionados

Vídeo

ABEC 3 Rodamiento de motor eléctrico 6200 2RS 6200 ZZ Rodamiento de alta precisión

Consiga el mejor precio

Vídeo

ABEC 5 6001ZZ Rodamiento de bajo ruido 6002 2RS Rodamiento P5 para motores asíncronos

Consiga el mejor precio

Vídeo

El motor de ventilador de escritorio está equipado con un rodamiento de bolas silencioso de alta precisión 6201ZZ 6201 2RS

Consiga el mejor precio

Vídeo

6202 Rodamientos de bolas de ranura profunda de alta precisión para equipos mecánicos

Consiga el mejor precio

Vídeo

Se trata de una serie de equipos de ensayo que se utilizan para la evaluación de la calidad de los materiales.

Consiga el mejor precio

Vídeo

Revestimiento de bola de goma sellado 6000 2RS ABEC 3 Revestimiento de bomba de piscina de alta velocidad

Consiga el mejor precio

6203 2RS Tamaño estándar universal rodamientos de bolas de ranura profunda Precio de fábrica

Consiga el mejor precio

Vídeo

El equipo de ensayo de la máquina de limpieza debe estar equipado con un equipo de ensayo de la máquina de limpieza.

Consiga el mejor precio

Detalles De Los Productos

Hogar Productos

Rodamiento del motor eléctrico

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery

Todas Las Categorías

Rodamiento del motor eléctrico

rodamiento de bolas de ranura profunda

Rodamientos de la serie 6000

Rodamientos de la serie 6200

Los rodamientos de la serie 6300

Rodamientos de la serie 6800

Rodamientos de la serie 6900

transporte de la alta precisión

El llevar P6

El llevar P5

P4 Rodamiento

Rodamiento en miniatura

Rodamientos no estándar

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery

Nombre De La Marca:	BUGAO/NBKT
Número De Modelo:	6203 6204 6205 6206
Cuota De Producción:	1,000 sets
Precio:	Negoiatiable
Detalles Del Embalaje:	Single/Barrels Package
Condiciones De Pago:	T/T

Información detallada

Descripción de producto

Información detallada

Place of Origin:

China

Nombre de la marca:

BUGAO/NBKT

Certificación:

ISO9001:2015

Model Number:

6203 6204 6205 6206

El material:

Acero de rodamiento, acero al carbono, etc.

Precisión:

P0, P6, P5, P4

Acceso:

C2, C0, C3, C4

Especificación:

El valor de las emisiones de CO2 es el valor de las emisiones de CO2 de los combustibles fósiles.

Cierre:

Abierto, sellado y protegido

Número de fila:

En una sola fila

Número de fila:

En una sola fila

Ruido y vibración:

Las medidas de seguridad se aplican a los vehículos de las categorías M1 y M2.

Ruido y vibración:

Las medidas de seguridad se aplican a los vehículos de las categorías M1 y M2.

Embalaje:

Embalaje individual, envasado por tubo, envasado a medida

Método de envío:

por vía aérea, por mar, por vía aérea, negociable

Código del SH:

8482102000

Servicio de OEM:

La personalización es bienvenida

Minimum Order Quantity:

1,000 sets

Precio:

Negoiatiable

Packaging Details:

Single/Barrels Package

Delivery Time:

Negotiable

Payment Terms:

T/T

Supply Ability:

30,000,000 sets

Descripción de producto

Kent bearings have the advantages of high speed, low noise, high precision and long life. The 20-year source factory always provides you with reliable products and services.

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 0

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 1

Basic Bearing No.	Bore d mm inch	Outer Diameter D mm inch	Width W mm inch	Radius r mm inch	Basic Load Rating KN		Ball Complement
					Dynamic	Static	NO.	Size mm
					Dynamic	Static
					C	CO
1601	4.763 .1875	17.463 .6875	6.350 .2500	0.3 .012	1.511	0.724	6	3.969
1602	6.350 .2500	17.463 .6875	6.350 .2500	0.3 .012	1.511	0.724	9	2.831
1603	7.938 .3125	22.225 .8750	7.144 .2812	0.3 .012	2.547	1.342	7	3.969
1604	9.525 .3750	22.225 .8750	7.144 .2812	0.3 .012	2.547	1.342	7	3.969
1605	7.938 .3125	23.019 .9062	7.938 .3125	0.3 .012	2.547	1.342	7	3.969
1606	9.525 .3750	23.019 .9062	7.938 .3125	0.3 .012	2.547	1.342	7	3.969
1607	11.113 .4375	23.019 .9062	7.938 .3125	0.3 .012	3.556	1.938	7	3.969
1614	9.525 .3750	28.575 1.1250	9.525 .3750	0.3 .012	3.921	2.245	8	4.763
1615	11.113 .4375	28.575 1.1250	9.525 .3750	0.3 .012	3.921	2.245	8	4.763
1616	12.700 .5000	28.575 1.1250	9.525 .3750	0.3 .012	3.921	2.245	8	4.763
1620	11.113 .4375	34.925 1.3750	11.113 .4375	0.6 .024	5.881	3.471	10	4.763
1621	12.700 .5000	34.925 1.3750	11.113 .4375	0.6 .024	5.881	3.471	10	4.763
1622	14.288 .5625	34.925 1.3750	11.113 .4375	0.6 .024	5.881	3.471	10	4.763
1623	15.875 .6250	34.925 1.3750	11.113 .4375	0.6 .024	5.881	3.471	10	4.763
1628	15.875 .6250	41.275 1.6250	12.700 .5000	0.6 .024	7.232	4.45	9	6.35
1630	19.050 .7500	41.275 1.6250	12.700 .5000	0.6 .024	7.232	4.45	9	6.35
1633	15.875 .6250	44.450 1.7500	12.700 .5000	1.0 .039	7.232	4.45	9	6.35
1635	19.050 .7500	44.450 1.7500	12.700 .5000	1.0 .039	7.232	4.45	9	6.35

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 2

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Wide Applications of Deep Groove Ball Bearings


Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 5

Inch 16 Series Ball Bearings 1601 1602 1605 for Vehicles Transmission Systems, Machine Tools, Textile Machinery 6

Etiquetas:

El motor de ventilador de escritorio está equipado con un rodamiento de bolas silencioso de alta precisión 6201ZZ 6201 2RS

Consiga el mejor precio

Vídeo
